OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681

Brand Name : Chitwing

Model Number : Smart Doorbell

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350 X 500 X 390

IMM Tonnage : 140T

Mold Weight : 429KG

Product material : PC

Design software : 3D-UG 4.0/ 2D-CAD

Runner : Hot runner

Mould life : ≥500000 shots

Mould base : LKM

Type : Three-plates mold

Part weight : 11g

Part size : 43.5 X 98.4 X 7.50mm

Contact Now

Intelligent doorbell bottom shell (1*2)

No.23681

Brand
Chitwing
Standard
LKM

Standard mold base

P/N: FCI3050. A = 80 B = 100 C = 90

 Small slide
5
Length Surface finish
350 1. A surface with MT11006 etch
2. Gluing surface (PSA) polished to SPI-B2
3. Waterproof surface polished to SPI-A3
Width
500
Height Harden the cavity and core with 1*2/S136
390
Net weight IMM tonnage: 140T
429kg
Type
Three-plates mold

☆ Gate:

- pin point gate

OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681

This is a three-plates mold developed (designed and manufactured) by Chitwing with hot runner. The surface is hardened to have high hardness and anti-wearing performance. The mold is free of leakage and loss of material, with uniform wall thickness, good fitted. The molded part has clear details, sharp edges and aesthetic appearance w/o burrs.

OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681

Part Properties Length Height
43.5 7.5
Width Net weight
98.4 11g

OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681

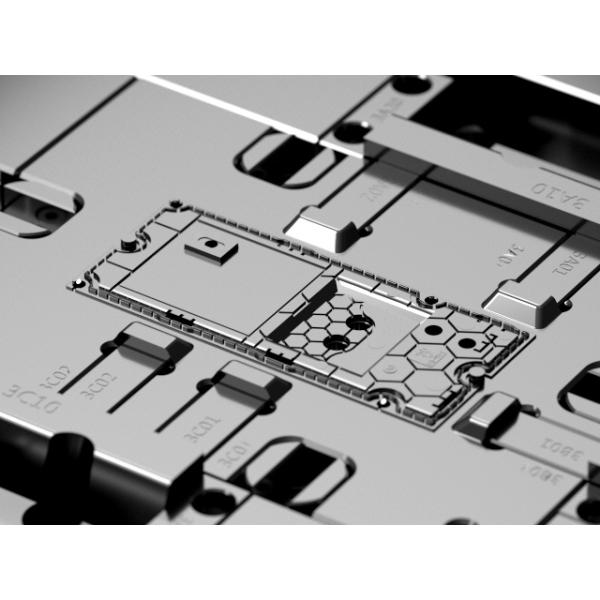

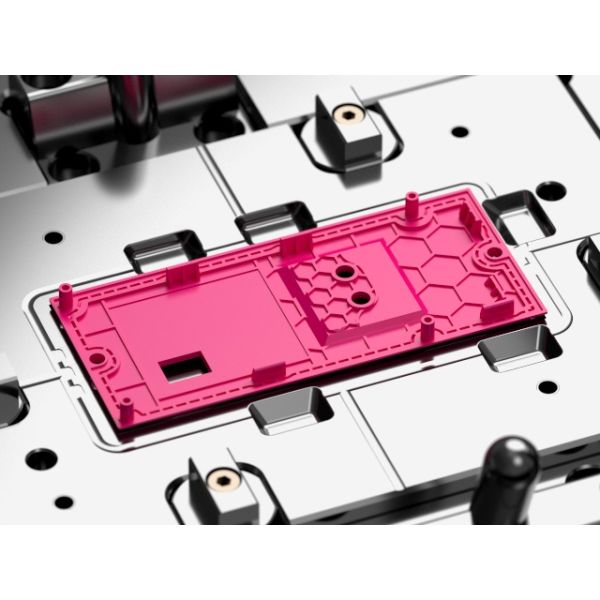

Display diagram

OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681OEM / ODM ： Hot Runner Injection Molding & Intelligent doorbell bottom shell (1*2) No.23681
